WATCHER　series

WATCHER　series　MODEL　TU-6300series

This device can detect all troubles of yarns, thus the knitted fabrics falling down from the machine can be prevented and also the knitting loss due to yarn slipping out can be reduced so much.

    FEATURES
  • This device detects perfectly the troubles such as yarn clogging due to fly dust, yarn slipping out and the knitting machine comes to cycle end or stops instantly by yarn breakage.
  • This device can be installed easily on any type of knitting machine and the dust-proof sensor help the use of long term.
  • The conventional drop type yarn breakage detector can be used together.


Model TU-6300P TU6300-CS TU6300M24 YU-6300i
  4 -yarns sensor
cycle end stop type

Dimension　130mmL x 90mmW x 40mmH

Power supply DC24

8-yarns sensor
cycle end stop type

Dimension  150mmL x 125mmW x 55mmH

Power supply AC200V

16- yarns sensor,
cycle end stop type

Dimension 238mmL x 125mmW x 60mmH

Power supply AC200V

16-yarns sensor,
Instant stop type

Dimension  218mmL x 140mmW x 60mmH

Power supply AC 100/ 200V

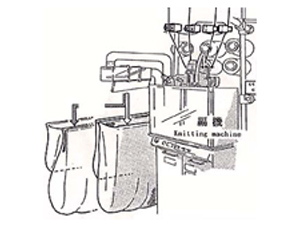

Knot Inspection Device Model TK-1

The defective products due to a knot being knitted in is sorted and stored

    Special feature
  • The defective knit products to be made by high gauge of knitted machine as well as high speed and large denier yarn are inspected automatically and sorted and stored.
TYPE Model TK-1
Control system

Detective method

stored bag
 Sequencer（PLC）


Special slit wire

Sorting stand for good or defective prpducts
