Elastic Yarn Feeding Device

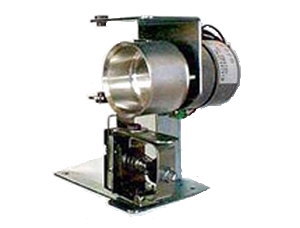

Roller type yarn feeding device (SOFTER IIS) MODEL SF-IIS

This device is very useful for the quality stability and increasing yield.

    Special feature
  • Yarn feeding can be done very smoothly and it’s tension become stable.
  • The trouble as yarn clogging and yarn breakage is reduced and the working efficiency of knitting machine is improved.
  • This device can be installed at any place very easily because it is very compact.
Type MODEL SF-ⅡS
power supply
Yarn number to be used
roller dia
roller rpm
Dimension 		ＤＣ24Ｖ
1 pc
Φ40
Max.3800rpm
Ｗ60　Ｈ115　Ｄ80

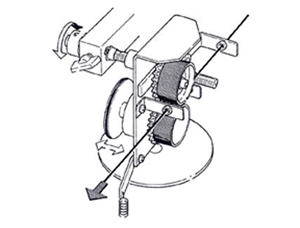

Mechanical type elastic yarn feeding device　MODEL ST-M

Conventional disc type or umbrella type can be remodeling to the stable feeding type.

    Special feature
  • The elastic yarn is fed by the parallel gear’s holding , thus the stable width of elastic yarn can be made.
  • There is no variation of the elastic yarn width according to the colours.
