Industrial　Machinery

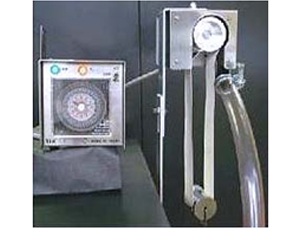

Flying Oil Removal Device 　MODEL TLK-101

It removes hydraulic oil mixed in water-soluble cutting oil to prevent spoilage

    Features
  • Remove and recover floating oil efficiently with a belt
  • Separate drive unit, timer / power supply unit, make it compact, easy to install and handle
  • With the timer, you can set the operation time arbitrarily
Specification ＴＬＫ101-35 ＴＬＫ101-70
Power
Belt width
Belt length
（ Center of rotating part）
Dimensions of drive main body
( timer part is installed separately)		 AC100V
35mm

300mm～1000mm

Ｗ90×Ｄ105×Ｈ75 		AC100V
70mm

300mm～1000mm

Ｗ90×Ｄ145×Ｈ75

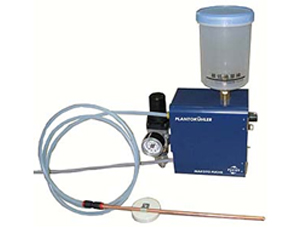

Cutting Oil Supply DeviceMODEL MF-Ⅰ～Ⅲ

To improve the environment and productivity

    Features
  • Longer tool life can be achieved
  • Omission of the product's oil washing process can be omitted
  • Fine adjustment of spray amount is possible with minimum appropriate amount
  • No need for waste liquid treatment, facilities can be simplified.
  • Optionally it can also be a lock line nozzle
Type MF-Ⅰ MF-Ⅱ/Ⅲ
Application Cutting and grinding of various metals Cutting and grinding of various metalsNumber of oil nozzles
Specified use oil Plant cut 35S Plant cut 35S
Oil tank capacity 500cc 500cc
Supply　Oil Capacity Usual supply capacity 30～80cc/8H Usual supply capacity 30～80cc/8H
Number of oil nozzles　 1 pc 2 or 3 pcs
Power Supply AC200V or AC100V AC200V or AC100V
Power consumption 10VA 30VA
Compressed Air Air pressure  0.5～0.6MPa Air pressure  0.5～0.6MPa
Air consumption Max 160NL/min Max 160NL/min
Total weight of device 3 kg 4.4kg
Dimension W200xD87xH270 W220xD92x H305
